Air receivers


Vertical or horizontal air storage – up to 50 bar

Air receivers are an important link in the compressed air chain: as storage media or buffers for peak load demand.

With Kaeser air receivers, you are always on the safe side technically: because we look at the overall system, we focus on perfectly matched easy installation and a comprehensive range of accessories.

  • Receiver sizes: 90 – 10,000 litres
  • Maximum permissible gauge pressure: 11, 16, 45 or 50 bar
  • Fittings, valves and instruments for every application
  • Complete sets for condensate separation

Your advantages

  • Low inspection costs:
    Rigorous construction to the AD-2000 standard enables inspection cycles of five years. You save money and improve your efficiency.
  • 300% increased service life:
    Thanks to hot-dip internal and external galvanisation to DIN EN ISO 1461, KAESER air receivers last approximately three times as long as conventional air receivers.
Your investment advantage: KAESER Life-Cycle Management
Life-cycle costs

KAESER air receivers – they not only ensure optimal tightness and durability but also feature many details designed to deliver long-term time and money savings, for example, the intelligent transport securing system and the ultra-easily accessible service openings.



Product details

Installation downstream of compressed air treatment

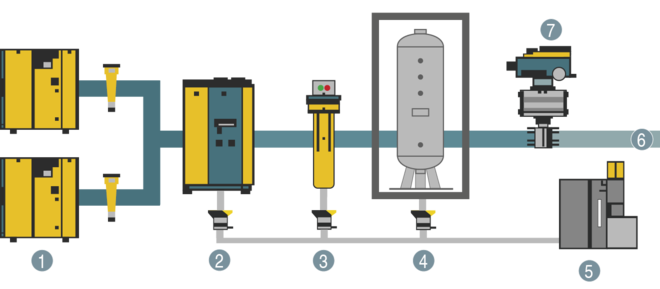

Air main charging system (DHS) – Installation downstream from air treatment
  1. Compressors
  2. Refrigeration dryer with ECO-DRAIN
  3. Filtration with ECO-DRAIN
  4. Air receiver with ECO-DRAIN
  1. AQUAMAT condensate treatment
  2. Compressed air network
  3. DHS electronic air-main charging system
Installation upstream of compressed air treatment

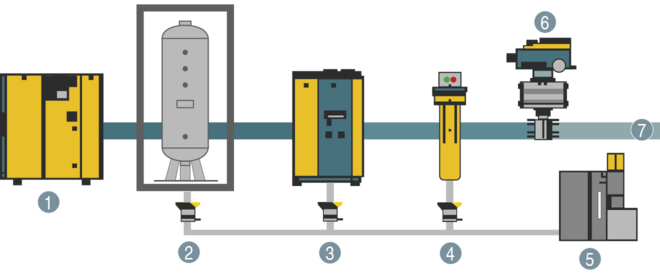

Air main charging system (DHS) – Installation upstream from air treatment
  1. Compressor
  2. Air receiver with ECO-DRAIN
  3. Refrigeration dryer with ECO-DRAIN
  4. Filtration with ECO-DRAIN
  1. AQUAMAT condensate treatment
  2. DHS electronic air-main charging system
  3. Compressed air network
Accessories: Valves, pressure gauges and condensate drains

Complete fittings sets

Made-to-fit fittings sets comprising:

  • Ball valve
  • Safety valve
  • Drain valve
  • Seals and small parts

Complete pressure gauge sets

Test connection on shut-off valve must be selected:

  • With shut-off valve (Metric 20 x 1.5)
  • With shut-off valve (Diameter 40 x 5)
  • With shut-off valve (Flange 60 x 25)

ECO-DRAIN complete sets

  • Electronically-controlled condensate drain for enhanced reliability
  • Available as a complete set, including mounting parts matched to your air receiver
Technical specifications

The technical specifications can be found in this brochure:
